Motor EzRun 5687SL 1100kV Sensorlös 1/6 Hobbywing

Beskrivning

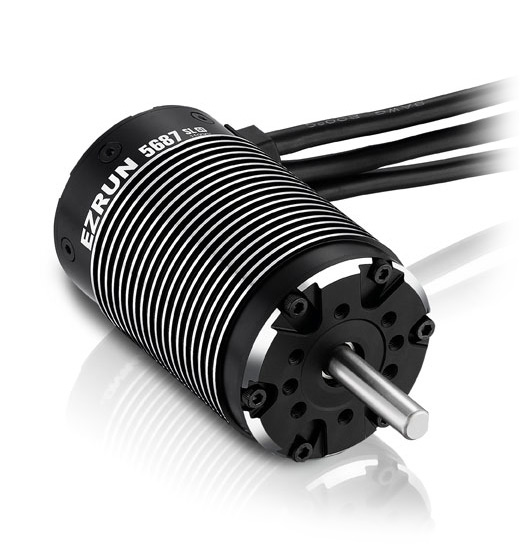

Hobbywing EzRun 5687 Brushless 1100KV Sensorless Motor

Features:

• 4 pole rotor for high torque, fast acceleration response and stable power output
• Special technology for temperature control implemented by this motor guarantees less heat more efficiency (efficiency rate of up to 90%)
• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearings for high durability and smoothness
• Rebuild-able design (partially rebuild-able) for routine maintenance effectively prolongs the motor life and raises the motor efficiency
• This EZRUN motor is a perfect match for the HOBBYWING EZRUN MAX6/5 ESC
• Temperature sensor port provides all-round protection to the power system (Hobbywing will develop some ESCs with the motor thermal protection function to pair these motors in future)

Specs:

• Type: Brushless Sensorless
• Poles: 4
• KV: 1100
• LiPo: 3-8S
• Resistance: 0.0041Ohm
• No Load: 4.1A
• Max Current: 200A
• Power: Max 5800W
• Outer Dia: 56mm
• Length: 87mm
• Shaft Dia: 8mm
• Shaft Length: 31mm
• Weight: 916g
• Application: 1/5 & 1/6 Light-Duty Vehicles
